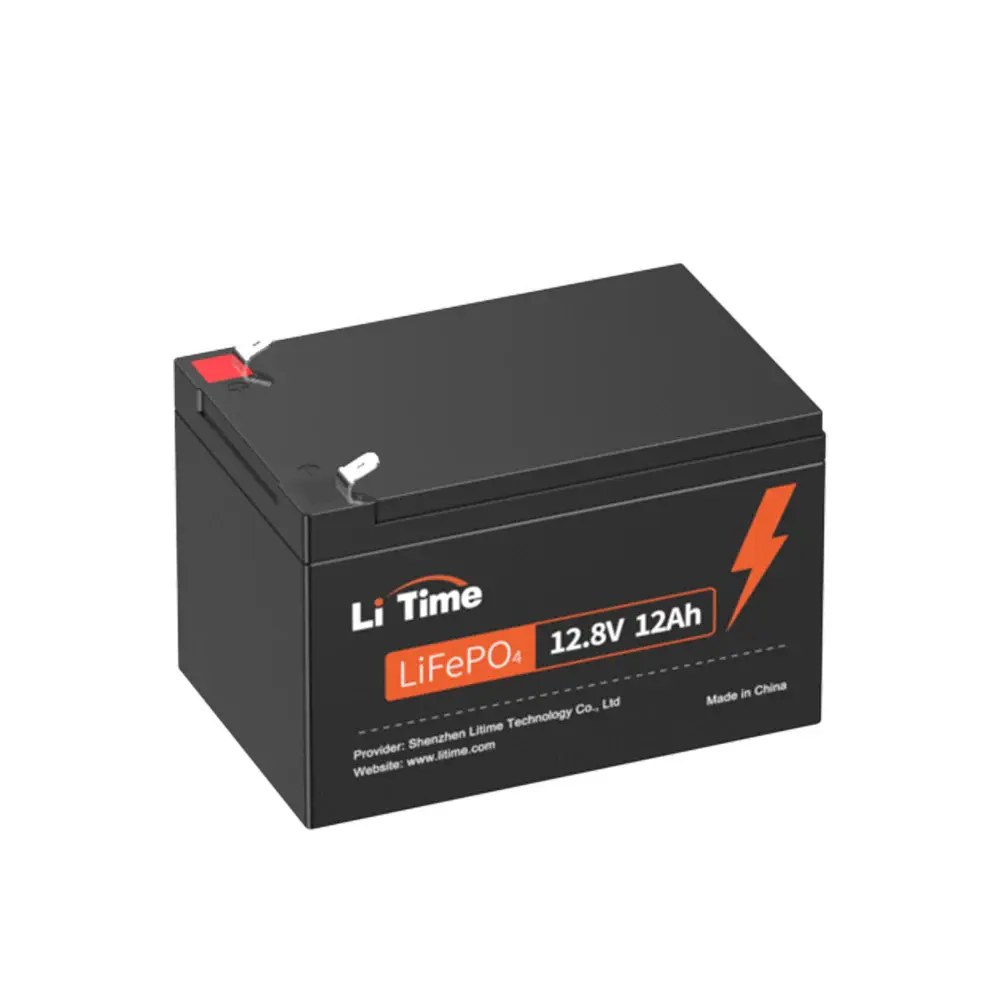

Li-Time 12V 12Ah Lithium Battery
The battery is guarded by battery management system from overcharging, over-discharging, over-current, over-temperature, and short circuits. 100% safe to use.
The battery is small, but the energy is big. Weighing at only 3.42lbs, with high energy density, it can provide Max. energy of 153.6Wh, 40A max. discharg current at 5 seconds.
Cell Type:
LiFePO4
Warranty:
3 Years
Cycle Life:
4000 Cycles at 100% DOD, 6000 Cycles at 80% DOD, 15,000 Cycles at 60% DOD
Nominal Voltage:
12.8V
Rated Capacity:
12Ah
Energy:
153.6Wh
Max. Expansion (Parallel & Series):
4P4S
Internal Resistance:
≤50mΩ
Certifications:
FCC, CE, RoHS, UN38.3
BMS:
12A
Max. Continuous Output Power:
153.6W
Max. Continuous Charge Current:
12A
Max. Continuous Discharge Current:
12A
Max. Discharge Current 5 Seconds:
50A
Max. Discharge Current 1 Second:
75A
Charge Method:
CC/CV
Charge Voltage:
14.4V ± 0.2V
Recommend Charge Current:
2.4A
